CMS-50E Pulse Oximeter, CMS50E, Alarm/Bluetooth

CMS-50E Pulse Oximeter, CMS50E, Alarm/Bluetooth
Item# CMS-50E
Regular price: $139.99
Sale price: $89.95
Bluetooth::  Carrying Case:
Availability: Usually ships the same business day

CMS-50E Pulse Oximeter



The CMS50E Fingertip Pulse Oximeter is an FDA-approved device for spot-checking blood oxygen saturation levels and pulse rate. The CMS50E’s padded finger chamber comfortably fits any finger size and delivers a swift reading. This portable device uses a rechargeable battery that provides up to 20 hours of power when fully charged. A single button located on the front of the oximeter controls all operations. This pulse oximeter was made for ease of use by physicians, nurses, patients, athletes, and pilots.

The CMS50E pulse oximeter uses a small but powerful measurement system. The device accurately measures oxygen saturation (Sp02) and pulse rate directly from any finger. This blood oxygen sensor detects low oxygen levels in the blood, even when the wearer is not actively interacting with the device. The oximeter does not require any external wires or probes when taking measurements.

This oximeter’s compact and lightweight design makes it ideal for travel or storage in a small space. Detailed SpO2 and pulse rate measurement information displays on the bright, multicolored screen with sharp text and images. Measurements update on the device’s screen as a numeric value, bar graph, and waveform animation. These data visualizations present a model of the wearer’s blood oxygen levels and pulse rate for helping the user understand the results. Screen brightness is adjustable to allow for use in a wide variety of lighting conditions.




Features

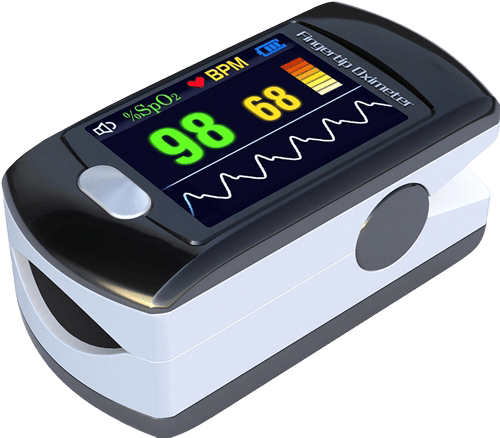

cms50e

Auditory and visual alarms in the device alert the user when oxygen levels in the blood go outside the user’s upper/lower range. Additional alarm types include low voltage level and improper device placement alerts. The optional pulse sound setting indicates the wearer’s current pulse rate.

Unlike most finger oxygen sensors, the CMS50E features a rechargeable lithium-ion battery that users can charge via USB or the included power adapter. A battery icon indicator provides a charge status level for the device’s rechargeable battery. For power-saving, an auto shut-down feature turns the device off within five seconds of finger removal.

The CMS50E can store up to 24 hours worth of information data history on the built-in storage. With the included software, users can transfer the data to a computer for exporting, saving, or sharing results with a medical professional or physician. The included data transfer cable connects the pulse oximeter to a PC for software integration.





Three Different Models


  1. - CMS50EW: With Bluetooth
  2. - CMS50E: With Wireless Transmitter & Receiver
  3. - CMS50E Basic: No Wireless Transmitter, Receiver or Bluetooth




Package Includes


CMS-50E box
  1. CMS-50E Unit
  2. Neck/wrist Cord
  3. DC Power Adapter Plug
  4. USB Connector Cord
  5. 3.7V Rechargeable lithium battery (Long Battery Life)
  6. Instruction manual
  7. If ordered, the Wireless Transmitter/Receiver




Features List


  • Integrated with SpO2 probe and processing display module
  • Compact and portable, allowing the wearer to take it with them
    throughout their day
  • Simple operation
  • Low power consumption
  • Operation menu for settings adjustment
  • SpO2 value display
  • Pulse rate value display
  • Bar graph display
  • Pulse waveform display
  • Display mode options
  • Adjustable screen brightness
  • Pulse rate sound indication
  • Upper/lower alarm range threshold settings
  • Battery capacity indication
  • Low-voltage indication
  • Data transfer to PC
  • Real-time data display on PC
  • Auto-shutdown function automatically powers off the device within
    5 seconds of finger removal
  • RF Wireless communication function (option)
    (only applied for Ver6.6R or above)
  • Connected with an external oximeter probe (option)
    (only applied for Ver6.6R or above)




CMS-50E Product Videos










Software Screen Shots:


SpO2 report 1


SpO2 report 2



Please note that your doctor or healthcare provider is the best source for your treatment plan. This unit is not intended to replace a doctor's visit and self diagnosis.


This unit comes with a 30 day money back guarantee and a one year warranty.




Extended Specifications



Warranty: 1 Year
SpO2 Range: 0% - 99%
SpO2 Accuracy: 70% - 99%, ±2%, 0 - 69%, unspecified
SpO2 Resolution: 1%
SpO2 Measurement Range: 0% - 100%
Pulse Rate Accuracy: ±2bpm or ±2%
Pulse Rate Resolution: 1bpm
Pulse Rate Measuring Range: 30bpm - 250bpm
Power Supply Requirement: 3.6V DC - 4.2V DC
Battery Type: Interior lithium battery, B F
20 hour working life expected per charge
Charge and discharge no less than 500 times
Operating Temperature: 0°C - 50°C
Storage Temperature: -40°C - 60°C
Operating Humidity: 15% - 95%
Storage Humidity: 5% - 95%
Operating Pressure: 700hPa - 1060hPa
Storage Pressure: 500hPa - 1060hPa
Dimensions: 57 x 32 x 30 mm
Weight: 1.8oz (50g with lithium battery)
Display Type: 1.36" 65k color OLED display
Display Resolution: 128x96
Parameter: SpO2 (2-digit), PR (3-digit)
Bar Graph (6-segment), pleth waveform
Alarm Types: Measurement out of set limits, Low voltage, Finger out of position



CMS-50E Software Download V.2.8.0 (8.9 MB)


CMS-50EW Bluetooth Software Download V.2.8.0 (8.9 MB)


CMS-50E Manual (735 KB)
