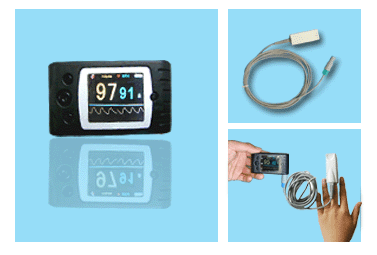

The CMS-60C Handheld Pulse Oximeter uses a real-time measurement system for blood oxygen saturation and pulse rate testing. The CMS60C measures SpO2 and pulse rate via a wired connection. A variety of probe options are available for this machine, including an adult probe, pediatric probe, soft probe, wrap probe, and ear clip probe. The device is suitable for hospital, community medical treatment, sports health care, and home family care.

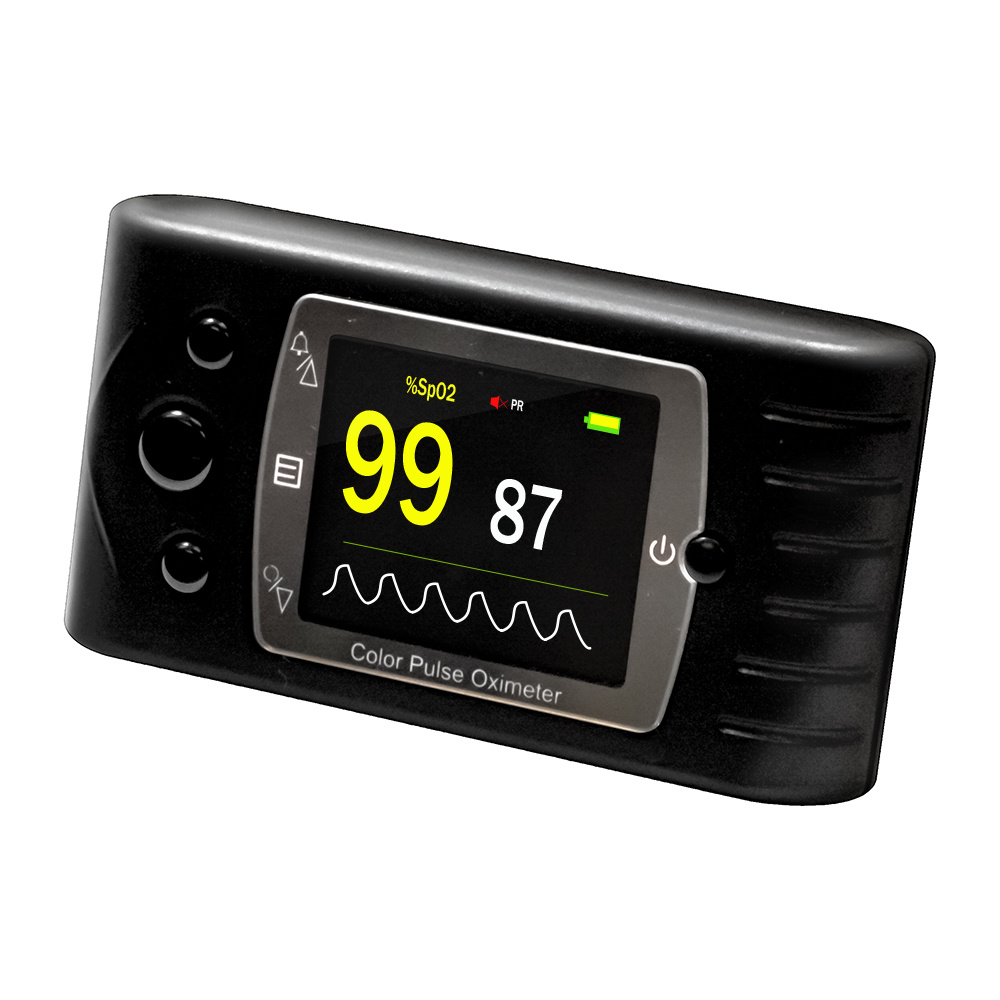

This handheld pulse oximeter fits comfortably in the userís hand and features a user-friendly button layout for navigating the on-screen menu. Precise measurement results update on the 1.8Ē TFT color screen as a numeric value, bar graph chart, and waveform animation. The oximeter is rechargeable via a standard USB cable (included) and provides up to 26 hours of working battery life.
Options for device settings such as recording management, screen brightness adjustment, and pulse tone configuration are available within the menus. Auditory and visual alarms in the CMS-60C activate when the oximeter measures activity levels above or below the limits that have been set based on the userís preference. The CMS60C also alerts to the presence of low-voltage levels in the unit that may affect measurement accuracy.
Up to 24 hours of measurement data can be transferred and stored onto a computer using the included software. With the software, users can export data for reference or analysis by a medical health professional and view real-time measurements with the continuous monitoring mode. The pulse oximeter connects to a PC via the USB transfer cable accessory.
External Finger Oximeter Probe
DC Power Adapter Plug
USB Connector Cord

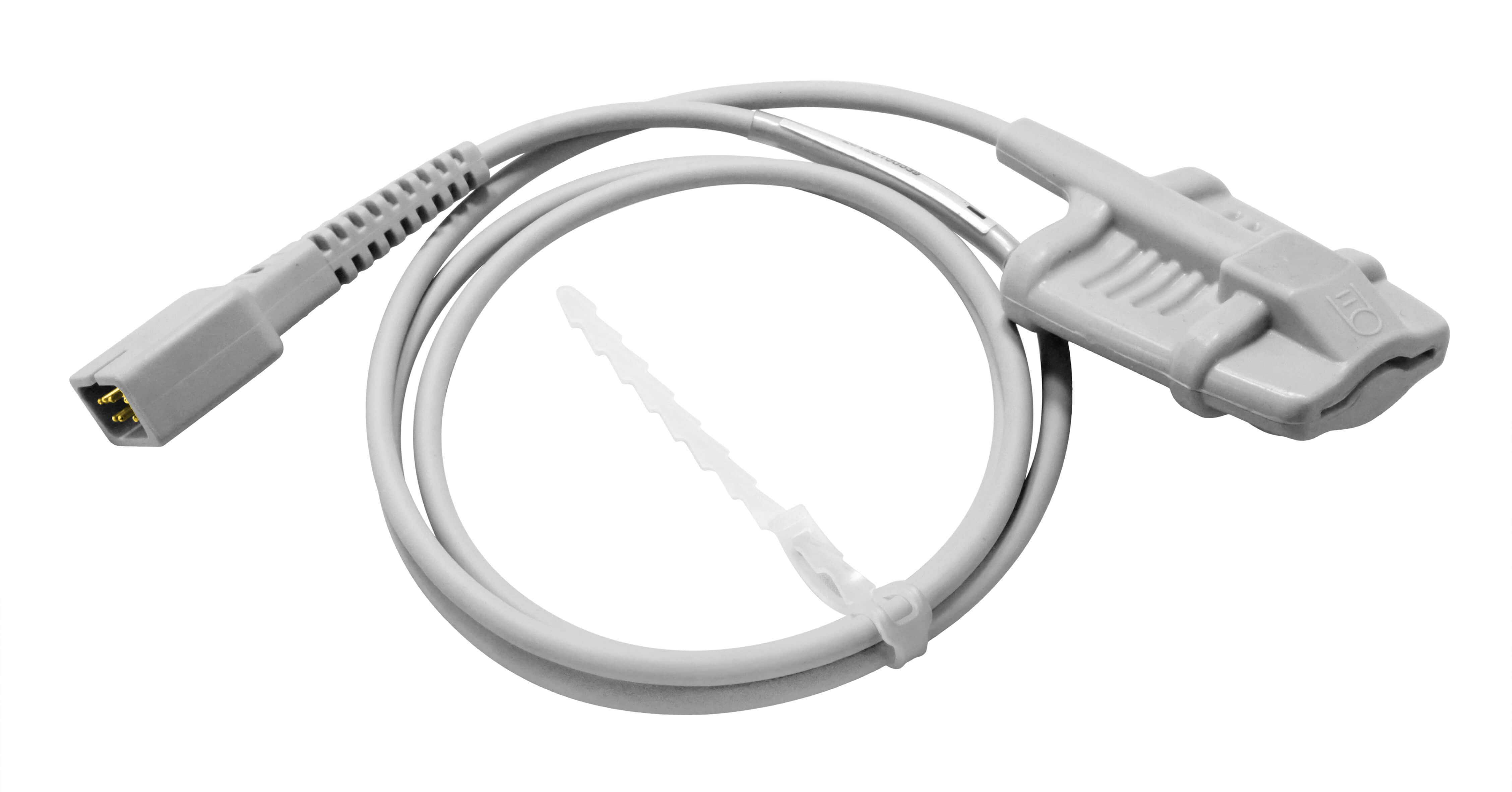

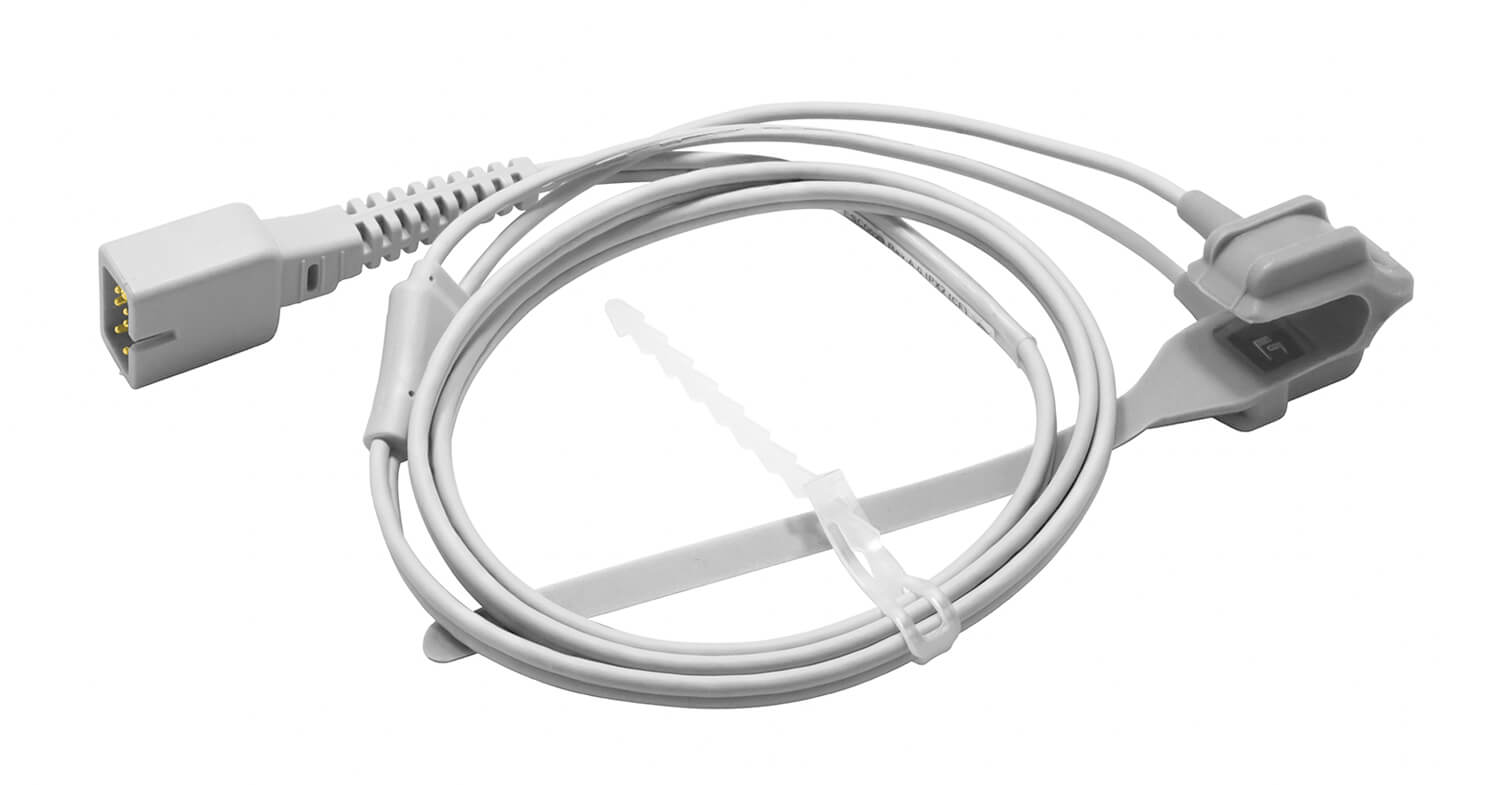

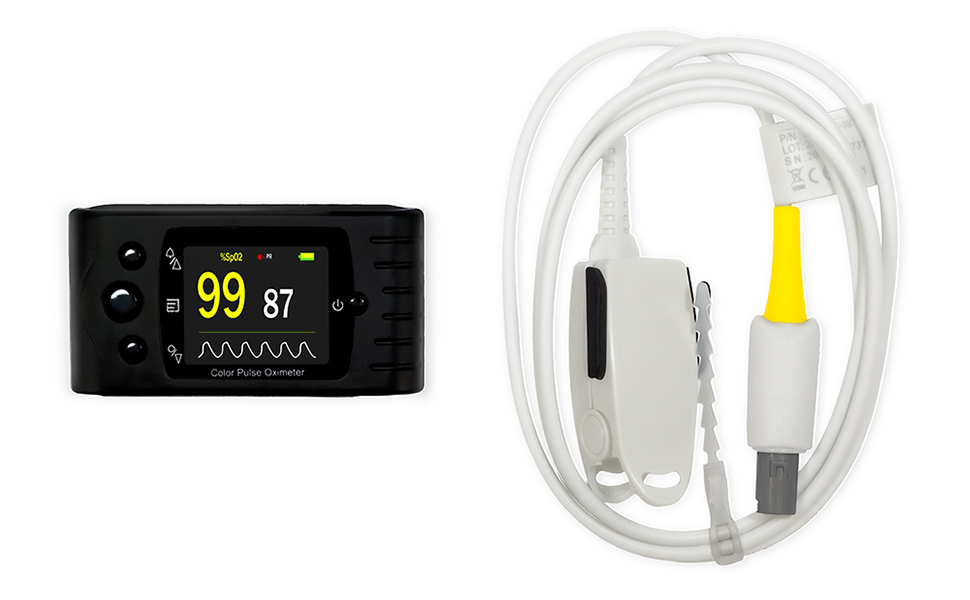

CMS-60C with Adult Probe

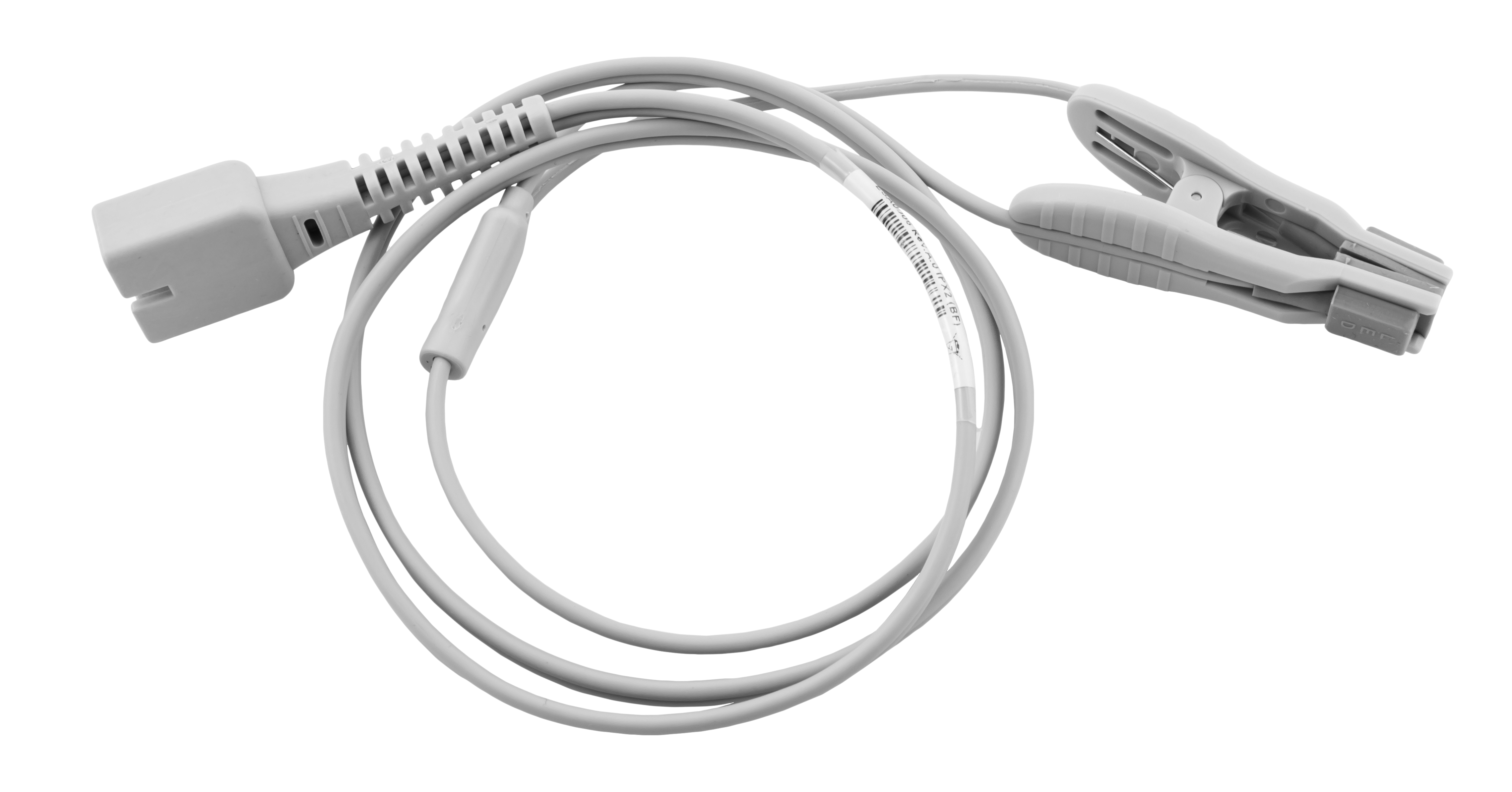

Adult Pediatric or Ear Clip Probe
Function switch to activate measurement and turn off power
Function key for menu setting
Free software to upload and analyze up to 24 hours of data at a time
Dual direction display with three adjustable brightness levels
4 parameters readings (SpO2, PR, Bar graph, Pulse waveform)
Alarms (auditory and visual) when pulse rate or SpO2 falls below preset levels
Pulse sound function
Suitable for adult, pediatric, and neonatal. An adult probe is included
FDA 510K approved
SpO2 Range: 35% - 99%
Accuracy: ±2% or 2bpm (70％ ～ 99％) <70%, unspecified
Pulse Rate Range: 30bpm - 250bpm
Battery: Rechargeable lithium battery
Display Type: 1.8" 65K Color TFT
Parameter: SpO2 (2-digit), PR (3-digit), bar graph, Pleth waveform
