Handheld Pulse Oximeter, CMS60D, CMS 60D

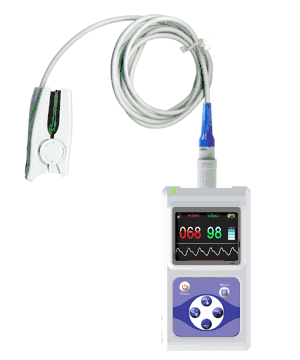

CMS60D Handheld Pulse Oximeter

The CMS60D Handheld Pulse Oximeter is FDA-approved for accurate measurement of SpO2 and pulse rate. These levels in the body are digitally monitored through an external probe sensor that is worn by the user. Optional probes include the adult probe, pediatric probe, soft probe, wrap probe, and ear clip probe. A color OLED screen displays measurement results as a numeric value, bar graph, and waveform animation. This pulse oximeter is battery-operated and features a portable design.

The SpO2/pulse rate probe sensors available for this handheld pulse oximeter use comfortable silicone materials. The CMS60D measures with an accuracy of �}2bpm for pulse rate and �}2% for blood oxygen saturation levels. External probes are plugged directly into the communication cable socket or through the available probe adapter.

The 1.8�h color OLED screen displays measurement information using sharp text and images. The adjustable brightness level enables comfortable viewing in the presence of dark or low-light conditions. The CMS60D�fs onscreen functions are presented in a clear and intuitive layout. Large buttons on the front of the device are used for menu navigation. The onscreen menu includes options for probe usage and measurement readings.

An audio alarm alert feature notifies the wearer of readings that are detected outside of the range that has been set by the user. The CMS60D�fs feature set also includes a clock function and pulse rate tone indicator. The device can be used with the �gRoutine Check Mode�h or �gContinuous Monitoring Mode,�h based on the user�fs preference. Continuous monitoring allows the device to update and display measurement readings in real-time.

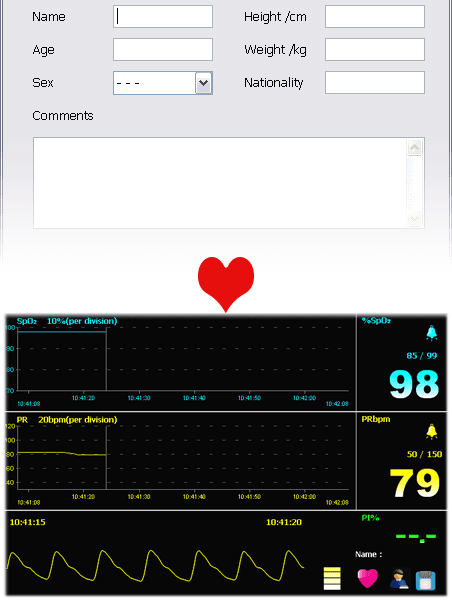

The user�fs data history can be transferred to a computer for detailed reference or analysis by a medical health professional. This blood oxygen meter includes software and a data transfer cable for linking to a computer. The CMS60D monitor�fs input readings are displayed in real-time when linked to the software. Measurement readings can also be recorded and stored directly on the machine.

---

Package Includes

1. CMS-60D Unit
2. 2x AA Batteries
3. USB Connector Cord
4. Instruction Manual

---

Product Video

---

Soft Probe

Wrap Probe

Ear Clip Probe

Probe Adaptor

Free Advanced Analysis Software
FDA 510K Approved
Warranty: 1 year


Features:

• Routine Check Mode and Continuous Monitoring Mode
• Sync with PC based Software (Win XP and Win Vista)
• Display: 1.8" Color TFT
• Resolution: 160x96
• Display Mode: Display Direction adjustable
• Indicator: Power indicator, Alarm sound, Pulse tone
• Interface: Socket for connecting SPO2 sensors and Socket for communication cables
• Power Supply: 2 AA Size Batteries DC 3V, <60MA
• Record: Data can be recorded up to 24 hours
• Alarm: Adjustable High and Low limits

Extended Specifications

Safety Classification: Meets the requirement of IEC60601 series

Type of Protection: Class II with internal electric power supply

Degree of Protection: BF

Dimensions: 92(W) x 82(H) x 22(D)mm

Weight: 136g (with battery)

Operation Temperature: 0�‹C - �}40�‹C

Operation Humidity: 15% - 95%

Storage Temperature: -20�‹C - �}60�‹C

Storage Humidity: 10% - 95%

Patient Range: Neonatal, Pediatric, and Adult

SpO2 Range: 0 ~ 100%

SpO2 Resolution: 1%

SpO2 Accuracy: (�})2% (70% - 100%, Adult/Pediatric, non-motion) (�})3% (70% - 100%, Neonatal, non-motion) 0% - 69% unspecified

Pulse Rate Range: 25 ~ 250 bpm

Pulse Rate Resolution: 1bpm

Pulse Rate Accuracy: (�})3 bpm (non-motion)

Pulse Rate Alarm Range: 25 - 250bpm

SpO2 Alarm Range: 0% - 100%

Alarm Refreshing Rate: 1s

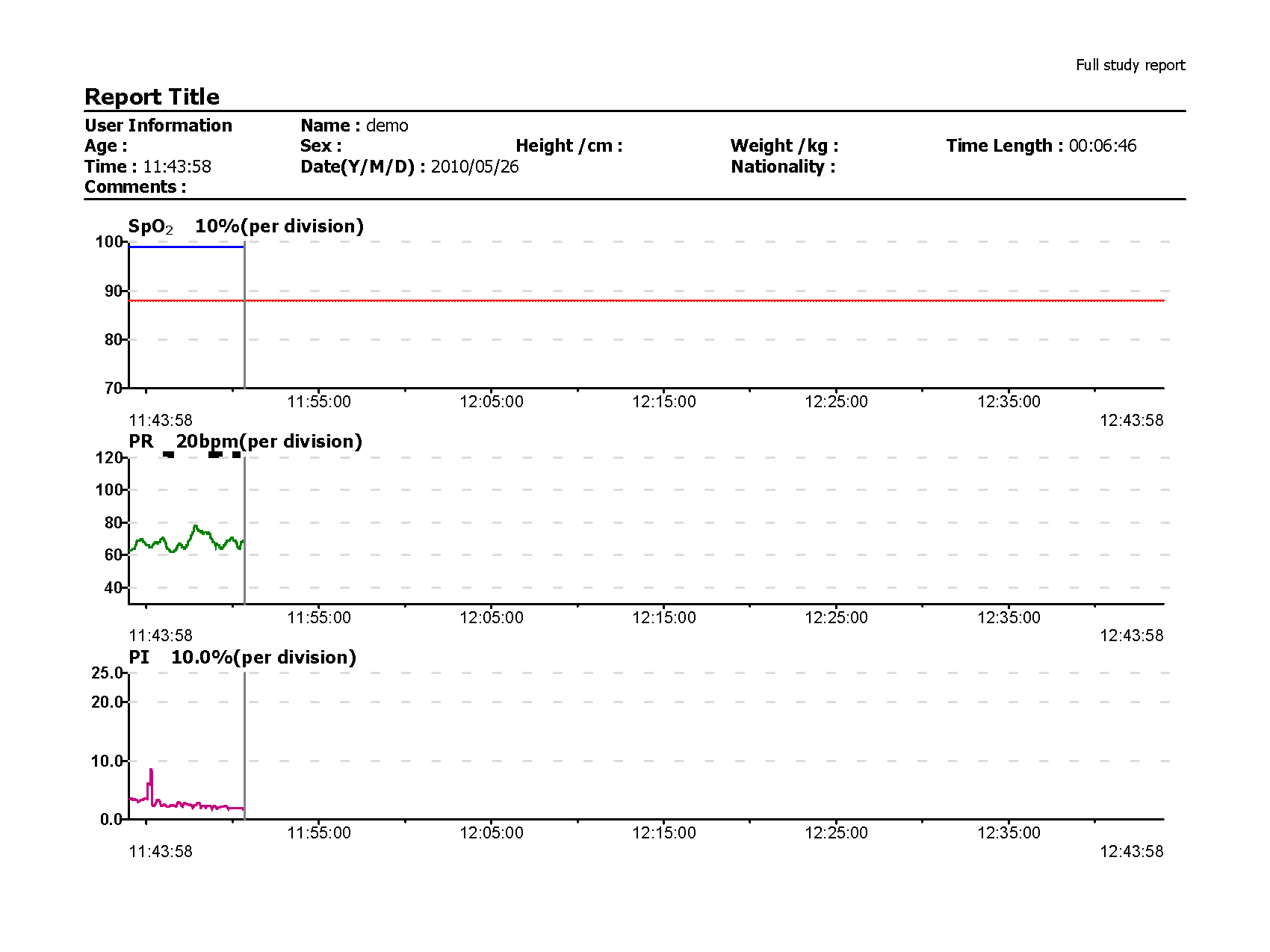

SPO2 Report --Full Study Report (71.7 KB)

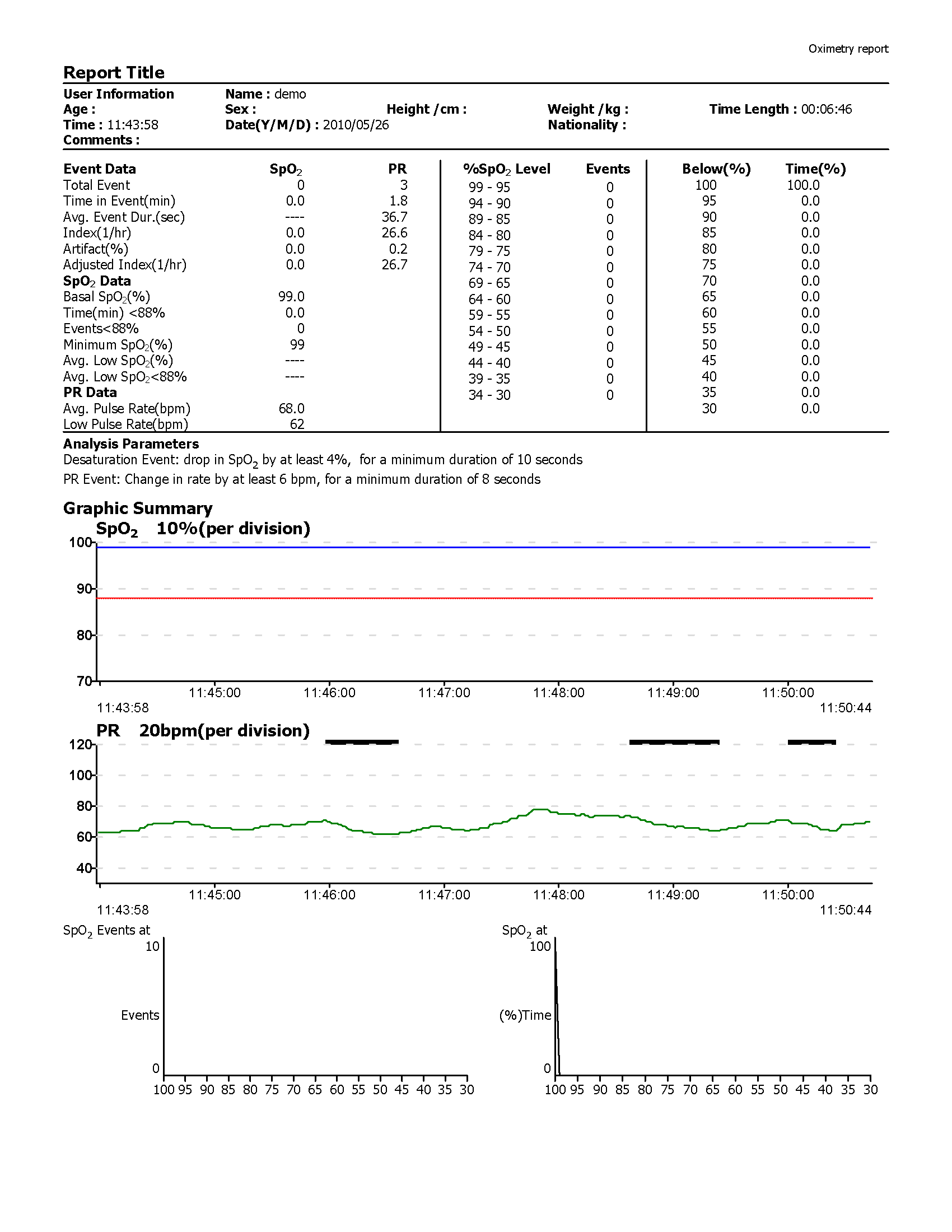

SPO2 Report --Oximetry Report (60.5 KB)
SPO2 Report --Strip Chart Report (45.7 KB)
SPO2 Report --Summary Report (59.1 KB)

CMS60D Software Download (6.06 MB)
