ECG100G Single-Channel Electrocardiograph

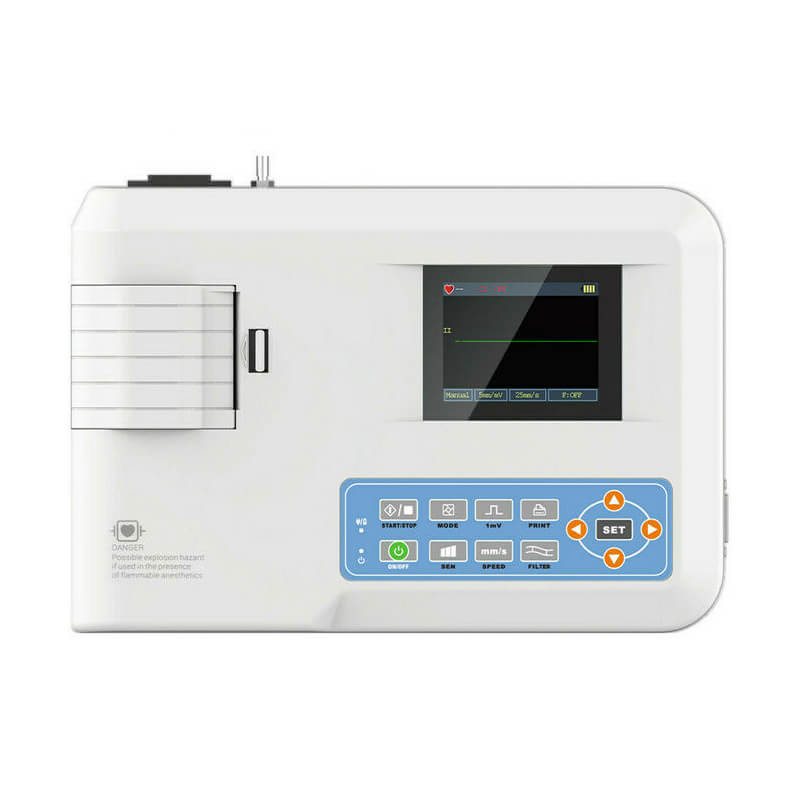

The ECG100G is a single-channel electrocardiograph, which features ECG waveform printing via the thermal printing system. Prompts for "Lead off" or "Lack of paper,” multi-language interface, recording ECG waveform in AUTO/Manual mode, convenient to operate.



  • Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter, and EMG filter of ECG signal.
  • High-resolution thermal printing system (8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz
  • Real-time and continuous recording for a clear and accurate ECG waveform with annotation character (including lead mark, sensitivity, paper speed, filter state, etc.).
  • In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
  • Multi-language (Chinese, English, French, Italian, German, Spanish and Turkish) interface and report.
  • In optimal DC state, up to 7-hour standby time, continuous print up to 4-hour, record up to 150 ECG waveform.



Extended Specifications


Input Mode: Floating and defibrillation protection
Frequency response: 0.05Hz ~ 150Hz (-3dB ~ +0.4dB)
CMRR: >60dB, >100dB (add filter)
Time Constant: ≥3.2s
Pulse Rate: Digital
Patient Leak Current: <10A
Calibration voltage: 1mV
Sensitivity: 5, 10, 20 mm/mV 5%, Standard Sensitivity: 10mm/mV2%
Noise Level: ≤15Vp-p
Input Circuit Current:≤50nA
Input Impedance: ≥50MΩ
Sampling Accuracy: 12-bit
Safety Classification: Class I, Type CF and defibrillation-proof applied part
Recording Mode: Thermal printing system
Paper Size: 50mm(W)20m(L)
Sampling Frequency: 800Hz
EMG interference Filter: 35Hz (-3dB)
Power Frequency Filter: AC 50Hz/60Hz (-20dB)
Paper Speed: 25, 50mm/s, 5%
Power Supply (AC): 100V ~ 240V (50/60Hz)
Power Supply (DC): 7.4V/2000mAh Rechargeable lithium battery
Fuse Specification: Two AC time lag fuse(φ520mm), T1.6AL250V
Waterproof Degree: IPX0
Working Mode: Continuous working
