Hand-Held Single Channel 12 lead ECG 80A

Hand-Held Single Channel 12 lead ECG 80A
Item# ecg-80a
Regular price: $399.99
Sale price: $259.95
Availability: Contact us for availability
This item is currently out of stock!

The smallest Handheld 12 leads ECG in the world

This handheld monitor is FDA approved for measuring and recording ECG with 12 leads wire or single-channel leads in automatic or manual modes. The monitor’s LCD screen updates with the user’s measurements for instantly viewing the ECG test results. The ECG 80A also prints results using the built-in thermal printer. This ECG device is rechargeable and does not require external cables for power.

For recording management, the machine integrates with the compatible PC software. This machine uses a standard USB cable for transferring data to the user’s computer. This unit includes both the PC software and USB transfer cable.

  • FDA Approved
  • A built-in thermal printer
  • Free PC software
  • Free USB cable included
  • A roll of paper included
  • Warranty: one year

  • 12 leads wire / Single channel. Display and print 8 different waveform alternatively
  • Auto / manual leads selection and operation. Real time recording on paper. Adjustable printing speed.
  • Hand-held single channel digital ECG machine with measurement report
  • Automatic and manual operation modesAutomatic and manual operation modes
  • LCD display ECG wave
  • AC/DC power, built-in rechargeable Ni-MH battery

Extended Specifications

Input Circuit: Floating
Calibrating Voltage: 1mV ()5%
Input Current: <100nA
CMRR: >103dB
A/D: 12bit
Frequency Response: 0.05Hz - 150Hz
Filter: AC 50/60Hz
EMG: 35Hz - 4Hz
Skin Voltage Tolerance: ()300mV
Sensitivity Setting: 5、10, 20mm/mV, conversion deviation <=5%
Noisy Level: <=15Vp-p
Safety Standard: IEC class I, type CF
Lead Selection: Automatic and Manual
Operation Mode: Automatic and Manual
Display: LCD 160x96 visual size: 34x60
Recording System: Thermal-array printing
Power Supply: AC220V ()10% DC 7.4 lithium battery
Dimensions: 190*90*40
Weight: 800g

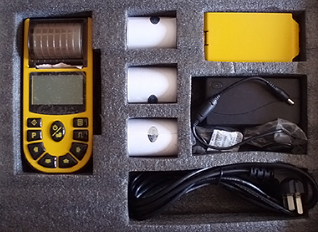

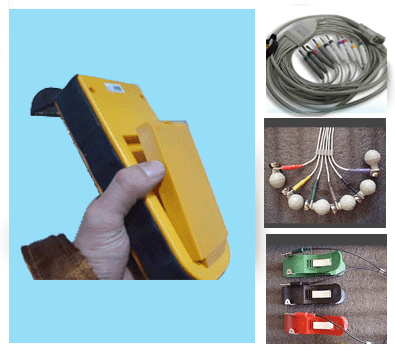

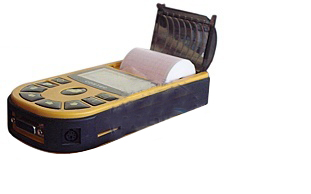

ECG 80A packing ECG 80A back ECG 80A cables ECG 80A box
