Portable ECG Monitor FL10/PM10 with Bluetooth for iOS and Android

Portable ECG Monitor FL10/PM10 with Bluetooth for iOS and Android
Portable ECG Monitor FL10/PM10 with Bluetooth for iOS and Android
Item# FL10
Regular price: $89.95
Sale price: $59.95
Availability: Usually ships the same business day

FL10 / PM10 Portable ECG Monitor Type 510(K):K152863 Device Listing Number:D268768




Portable ECG Monitor FL10/PM10 with Bluetooth Wireless Transmission


The FL10 / PM10 Portable ECG Monitor is a handheld device for checking ECG. Touch-based heart monitor leads are built-in to the device for measurement without extensions or wires. The FL10 is suitable for family and individual use. This personal ECG monitor can help to alert to early signs of cardiovascular diseases, reducing health risks.

Cases of cardiac situations which need immediate evaluation can be monitored at home or while traveling with the FL10. This compact device will fit in a pocket or other small space. The one-lead ECG sensors operate wirelessly, independent of external components. External wires, cables, or electrodes are not required.

Up to 12 cardiac events can be detected with this ECG monitor. Readings display on the 1.77" Color TFT-LCD after a 30-second measurement. Chest lead and limb lead recording modes are available for hand, wrist, ankle, or chest measurements.

Heart rate and single-channel ECG waveform/trace data can be tracked and transferred to an Android/iOS device via Bluetooth. The FL10 integrates with the mobile app that features automatic measurement, ECG reading storage, data upload, health results download, and health professional advice. Unlimited ECG rhythm/heartbeat data recordings can be saved and uploaded to the cloud storage in the app. The ECG data can be shared with a health professional by phone, print, or email for further diagnostic reference.




    Features



  • 1.77" Color TFT-LCD.
  • Quickly to check ECG once finger touching, convenient to operate
  • Accurate conclusion can be obtained immediately after measuring
  • Bluetooth Transmission
  • ECG data can be saved to CLOUD Platform permanently, convenient to check and analyze
  • Historical data can be printed at any time, convenient to diagnose
  • The built-in rechargeable lithium battery can continuously record for up to 500 cases in full charging



FL10/PM10 Product Detail Video




Save and Share Your Data with Doctors




    With the App (Android and iOS) provided, you are able to:

  • Upload the data to your smartphone (Android, iPhone, or iPad) to save, review, manage, and print
  • Download the reports as PDF files to your phone to take to doctor's office in your next visit
  • Send the data to your cardiologist by email to keep him aware of your cardiac performance
  • Enjoy all the service & functions without paying extra fee or subscription.


Data can be uploaded to your PC

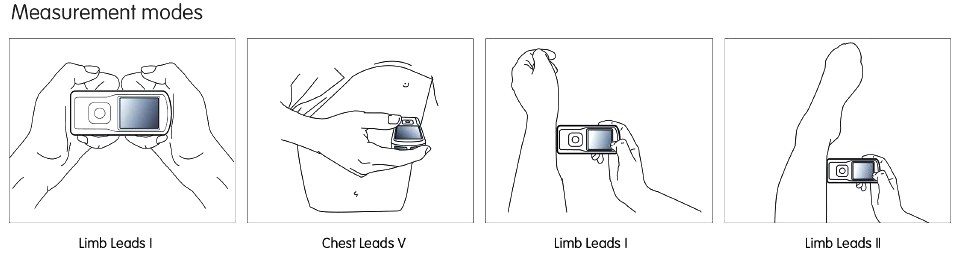

Portable ECG Monitor FL10 / PM10 Measurement Methods



PHMS Contec Medical Systems - iPhone & iPad Application


This application is used for a variety of medical testing equipments of our company.

It can be used to receive data by Bluetooth and upload the data to servers,and view health records,trend charts,health suggestion and so on.


    Now the application supports the following devices:

  • Oximeter
  • NIBP
  • Spirometer
  • Glucose meter
  • Scales
  • Urine analyzer
  • Portable ECG
  • Thermometer

This application can be associated with Apple HealthKit,the measurement results will be synchronized to Apple HealthKit(iPads do not support). Open Apple's HealthKit --> Sources --> PHMS to set items which you allow "PHMS" to write data.



Click here for iTunes application store link


Click here for Google Play application store link



FL10, PM10

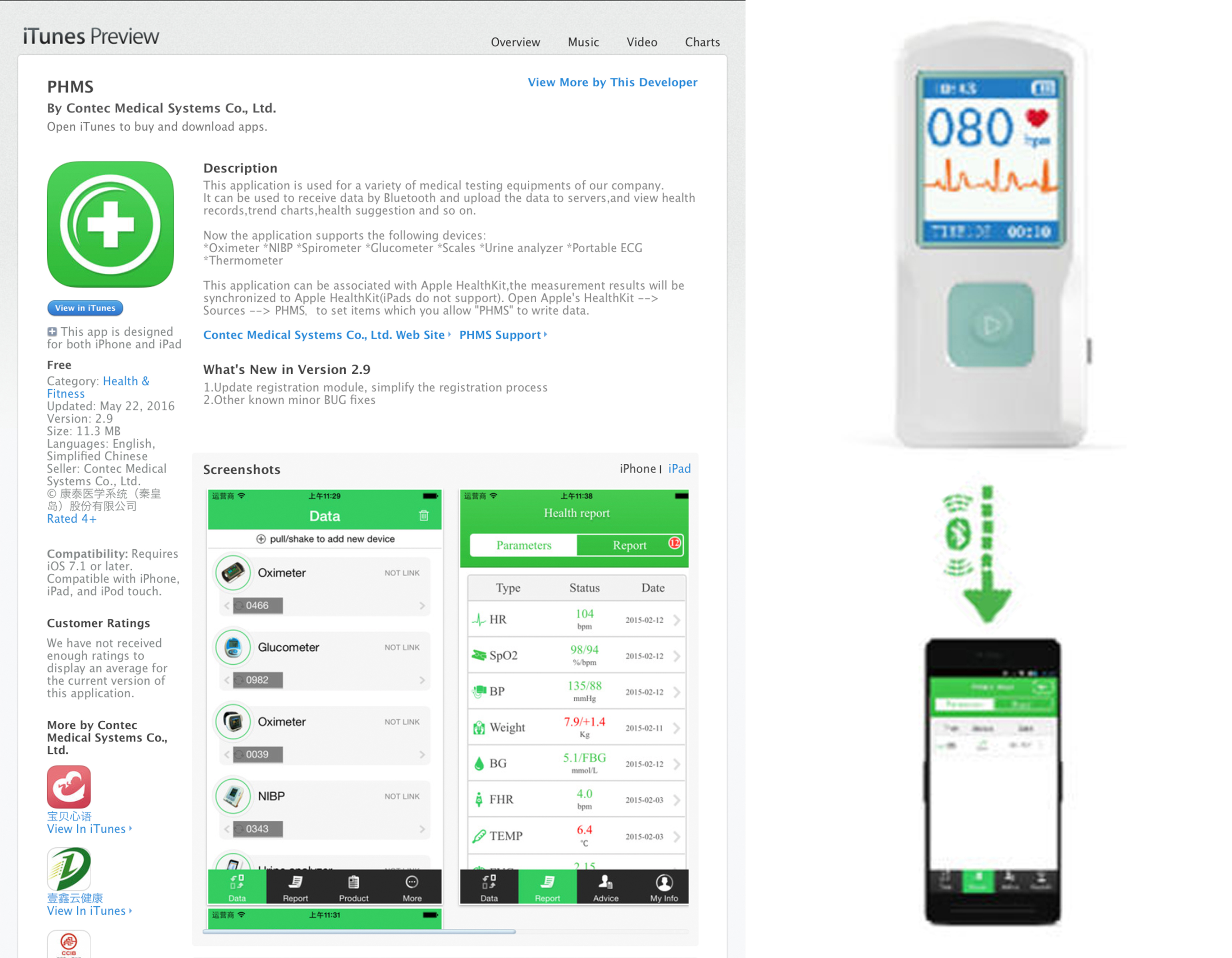

PHMS Contec Medical Systems Application Screenshots


FL10 app

FL10 screenshots




Extended Specifications


Operating Temperature: +5°C - +40°C
Operating Humidity: 25% - 80%
Operating Atmospheric Pressure: 700hPa - 1060 hPa
Storage Temperature: -40°C - +55°C
Storage Humidity: Less than or equal to 95%
Storage Atmospheric Pressure: 50 kPa - 106 kPa
Dimensions: 100mm(L) X 45mm(W) X 15mm(H)
Weight: ±60g
