Facelake FL40 ECG Monitor with color screen, real time PC view

Facelake FL40 ECG Monitor with color screen, real time PC view
Item# fl40
Regular price: $299.95
Sale price: $199.95
Availability: Usually ships the same business day

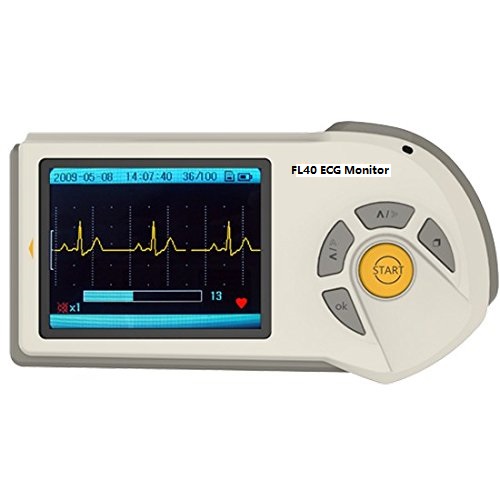

FL40 ECG Monitor



FL40 ECG Monitor is an Ultra-Portable ECG Unit with a 2.8" color TFT screen for improved ease of visibility. It is ideal for EMS/Rescue, physician, home care and patient use. 1-lead 30 second ECG Strips and results may be displayed and transferred to a PC for archiving and printing. Includes software to transmit to PC, USB Cable and 3-lead ECG cable.

Portable ECG Monitor FL40 is specially designed for personal use to track heart activity at home, at work or on a trip in case of cardiac situation that needs

Immediate EKG recording and evaluation.

Compact one-lead ECG design to operate independently and individually by two hands at anytime, anywhere. No wires, cables or electrodes are needed.

Perfect companion for anyone with:

The need to monitor or capture their cardiac condition whenever it occurred chronic diseases, especially coronary heart disease, chest pain, palpitations, myocarditis, diabetes, hypertension, obesity, dyspnea etc., ​family history of cardiac diseases, or people who are concerned about their heart health.

The stored heart data records can be used as a reference for clinical ECG examination. Know your heart; know your health.



  • Two measurement modes and upload the data to PC
  • Users can choose different measurement modes as they like, 30s for easy mode or continuous mode for a long time measurement
  • In easy mode this ecg monitor records heart beats & up to a 30 seconds’ single-channel EKG, and allows you to share the report with your doctor for further review. Also, the immediate result will be displayed on the screen within one minute, giving you peace of mind
  • Upload the data to your computer to save, review, manage and print
  • Download the reports as PDF to a USB Flash Drive to take to doctor's office in your next visit
  • Send the data to your cardiologist by email to keep him aware of your cardiac performance
  • Enjoy all the service & functions without paying extra fee or subscription




PC software:





FL40's 0.5 to 75 hertz frequency response provides optimal signal quality. Grid marks are provided at 5mm spacing. The unit can be configured to store 30 seconds strips or be put in a continuous mode for extended monitoring.

Patient may hold the unit's electrodes between both hands (Lead I), use the right hand to hold the unit against the left leg (Lead II) or use the right hand to hold the unit against the chest (chest lead). However, do note that if the patient has dry skin, there will be high impedance and you may get poor signal quality. Applying water or gel to the skin may improve impedance and ECG signal quality.

For better signal quality, you can use the optional limb clips or snap-ecg electrode cable. The limb clips can clip against the patients wrists and leg and applies gentle pressure to reduce artifact and noise. The limb clips are especially useful on geriatric patients which may have thin skin which would be easily damaged with electrode use. For the best signal quality and least noise on the ECG waveform, use the 3-lead cable and apply electrodes.

Always relax when taking measurements, as muscle action may cause noise to appear on the ECG signal.

The unit will automatically power off if no key is pressed within 1 to 10 minutes (user configurable).



    Features

  • FDA 510(K)# K080933
  • Measurement: ECG and heart rate
  • Leads: I, II, and III
  • Detailed EKG analysis report
  • ECG arrhythmia analysis
  • Convenient cable-free operation
  • PC software for data management and analysis
  • ECG cable and electrodes (optional)
  • Measurement in 30 seconds
  • Memory for a maximum of 30-second ECG measurements
  • Continuous measurement supported
  • Backlit LCD display
  • Auto power-off in 60 seconds
  • Low battery indicator
  • Two AAA batteries included
  • Each set of batteries can last up to 500 measurements


Software Screenshot

Software is provided for saving the data into computer files and for performing analysis. The following screen shot shows the record management function.



Software screenshot

Sample of ECG Captured

Software screenshot

Extended Specifications



Display: 60mm x 45mm unicolor LCD
One Measurement Channel
Signal Bandwidth: 250Hz
Heart Rate: 30bpm - 100bpm ±2bpm; 101bpm - 240bpm ±4bpm or 2%
Dimensions: 140mm x 75mm x 26mm
Weight: 125g (not including two AAA batteries)
Operating System Support: Win XP, Win Vista, Win 7


FL40 ECG Monitor Manual PDF Download (479 KB)
